C# OPC UA 服务器实现指南

本文将尝试说明如何使用C#创建一个完整的OPC UA服务器。我们将使用开源的OPC UA .NET Standard库，感觉要写一个完整的服务还是太麻烦了，要考虑的太多了，只能给有需要的朋友一点点意见吧。

项目准备

首先需要安装必要的NuGet包。在Visual Studio中，通过NuGet包管理器安装：

C#
OPCFoundation.NetStandard.Opc.Ua

完整代码示例

Program.cs

C#
class Program {
  static async Task Main(string[] args) {
    MyServer server = new MyServer();
    await server.Start();

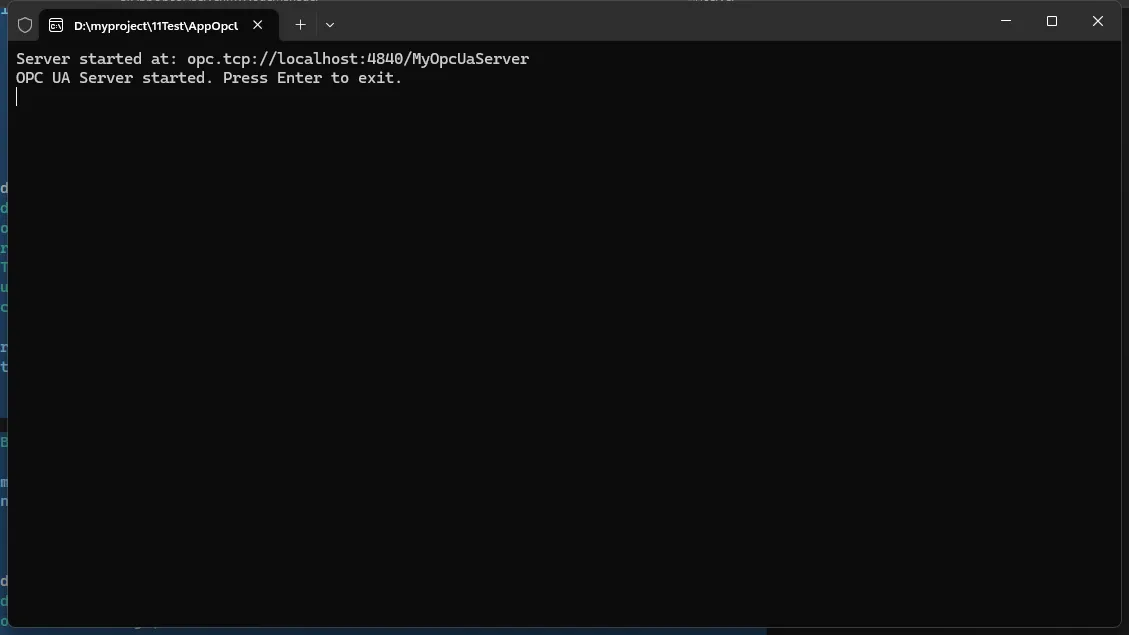

    Console.WriteLine("OPC UA Server started. Press Enter to exit.");
    Console.ReadLine();

    server.Stop();
  }
}

MyServer.cs

C#
public class MyServer {
  private ApplicationInstance application;
  private StandardServer server;
  private MyNodeManager nodeManager;

  public async Task Start() {
    try {
      // 步骤1：创建应用程序配置
      application =
          new ApplicationInstance { ApplicationName = "My OPC UA Server",
                                    ApplicationType = ApplicationType.Server,
                                    ConfigSectionName = "MyOpcUaServer" };

      // 加载应用程序配置
      var config = await LoadApplicationConfiguration();

      // 步骤2：检查证书
      await application.CheckApplicationInstanceCertificate(false, 2048);

      // 步骤3：创建自定义服务器实例
      server = new CustomStandardServer(config);

      // 步骤4：启动服务器
      await application.Start(server);

      Console.WriteLine(
          $"Server started at: {config.ServerConfiguration.BaseAddresses[0]}");
    } catch (Exception ex) {
      Console.WriteLine($"Error starting server: {ex.Message}");
      throw;
    }
  }

  public void Stop() {
    if (server != null) {
      server.Stop();
    }
  }

  private async Task<ApplicationConfiguration> LoadApplicationConfiguration() {
    var config = new ApplicationConfiguration() {
      ApplicationName = "My OPC UA Server",
      ApplicationUri = "urn:MyOpcUaServer",
      ApplicationType = ApplicationType.Server,
      SecurityConfiguration =
          new SecurityConfiguration {
            ApplicationCertificate = new CertificateIdentifier(),
            TrustedPeerCertificates = new CertificateTrustList(),
            TrustedIssuerCertificates = new CertificateTrustList(),
            RejectedCertificateStore = new CertificateTrustList(),
            AutoAcceptUntrustedCertificates = true
          },
      TransportConfigurations = new TransportConfigurationCollection(),
      TransportQuotas = new TransportQuotas { OperationTimeout = 15000 },
      ServerConfiguration =
          new ServerConfiguration {
            BaseAddresses =
                new StringCollection {
                  "opc.tcp://localhost:4840/MyOpcUaServer"
                },
            MinRequestThreadCount = 5,
            MaxRequestThreadCount = 100,
            MaxQueuedRequestCount = 200,
          },
      TraceConfiguration = new TraceConfiguration()
    };

    await config.Validate(ApplicationType.Server);
    return config;
  }
}

// 自定义服务器类，用于初始化节点管理器
public class CustomStandardServer : StandardServer {
  private ApplicationConfiguration configuration;

  public CustomStandardServer(ApplicationConfiguration configuration) {
    this.configuration = configuration;
  }

    protected override MasterNodeManager CreateMasterNodeManager(IServerInternal server, ApplicationConfiguration configuration
    {
    List<INodeManager> nodeManagers = new List<INodeManager>();

    // 创建自定义节点管理器并添加到列表
    nodeManagers.Add(new MyNodeManager(server, configuration));

    // 创建主节点管理器
    return new MasterNodeManager(server, configuration, null,
                                 nodeManagers.ToArray());
    }
}

MyNodeManager.cs

C#
public class MyNodeManager : CustomNodeManager2
{
    private IServerInternal server;
    private ApplicationConfiguration configuration;

    public MyNodeManager(IServerInternal server, ApplicationConfiguration configuration)
        : base(server, configuration, "http://myopcuaserver.com")
    {
        this.server = server;
        this.configuration = configuration;
        SystemContext.NodeIdFactory = this;
    }

    public override void CreateAddressSpace(IDictionary<NodeId, IList<IReference>> externalReferences)
    {
        lock (Lock)
        {
            IList<IReference> references = null;
            if (!externalReferences.TryGetValue(ObjectIds.ObjectsFolder, out references))
            {
                references = new List<IReference>();
                externalReferences[ObjectIds.ObjectsFolder] = references;
            }

            // 创建 MyDevices 文件夹
            FolderState myDevicesFolder = CreateFolder(null, "MyDevices", "设备");

            // 将文件夹组织到 Objects 文件夹下
            myDevicesFolder.AddReference(ReferenceTypes.Organizes, true, ObjectIds.ObjectsFolder);
            references.Add(new NodeStateReference(ReferenceTypes.Organizes, false, myDevicesFolder.NodeId));

            // 设置文件夹属性
            myDevicesFolder.EventNotifier = EventNotifiers.SubscribeToEvents;
            AddPredefinedNode(SystemContext, myDevicesFolder);

            // 创建温度变量
            BaseDataVariableState temperatureVariable = CreateVariable(
                myDevicesFolder,
                "Temperature",
                "温度",
                DataTypeIds.Double,
                ValueRanks.Scalar);

            // 设置温度变量的属性
            temperatureVariable.Value = 25.0;
            temperatureVariable.AccessLevel = AccessLevels.CurrentRead | AccessLevels.CurrentWrite;
            temperatureVariable.UserAccessLevel = AccessLevels.CurrentRead | AccessLevels.CurrentWrite;
            temperatureVariable.Historizing = false;
            temperatureVariable.StatusCode = StatusCodes.Good;
            temperatureVariable.Timestamp = DateTime.Now;

            // 添加工程单位
            AddEngineeringUnit(temperatureVariable, "°C", "摄氏度");

            // 添加描述
            temperatureVariable.Description = new LocalizedText("当前温度值");

            // 添加范围
            AddAnalogRange(temperatureVariable, -100.0, 100.0);

            AddPredefinedNode(SystemContext, temperatureVariable);

            // 创建湿度变量
            BaseDataVariableState humidityVariable = CreateVariable(
                myDevicesFolder,
                "Humidity",
                "湿度",
                DataTypeIds.Double,
                ValueRanks.Scalar);

            // 设置湿度变量的属性
            humidityVariable.Value = 60.0;
            humidityVariable.AccessLevel = AccessLevels.CurrentRead | AccessLevels.CurrentWrite;
            humidityVariable.UserAccessLevel = AccessLevels.CurrentRead | AccessLevels.CurrentWrite;
            humidityVariable.Historizing = false;
            humidityVariable.StatusCode = StatusCodes.Good;
            humidityVariable.Timestamp = DateTime.Now;

            // 添加工程单位
            AddEngineeringUnit(humidityVariable, "%RH", "相对湿度");

            // 添加描述
            humidityVariable.Description = new LocalizedText("当前湿度值");

            // 添加范围
            AddAnalogRange(humidityVariable, 0.0, 100.0);

            AddPredefinedNode(SystemContext, humidityVariable);
        }
    }

    private FolderState CreateFolder(NodeState parent, string name, string displayName)
    {
        FolderState folder = new FolderState(parent);

        folder.SymbolicName = name;
        folder.ReferenceTypeId = ReferenceTypes.Organizes;
        folder.TypeDefinitionId = ObjectTypeIds.FolderType;
        folder.NodeId = new NodeId(name, NamespaceIndex);
        folder.BrowseName = new QualifiedName(name, NamespaceIndex);
        folder.DisplayName = new LocalizedText(displayName);
        folder.WriteMask = AttributeWriteMask.None;
        folder.UserWriteMask = AttributeWriteMask.None;
        folder.EventNotifier = EventNotifiers.None;

        if (parent != null)
        {
            parent.AddChild(folder);
        }

        return folder;
    }

    private BaseDataVariableState CreateVariable(
        NodeState parent,
        string name,
        string displayName,
        NodeId dataType,
        int valueRank)
    {
        BaseDataVariableState variable = new BaseDataVariableState(parent);

        variable.SymbolicName = name;
        variable.ReferenceTypeId = ReferenceTypes.Organizes;
        variable.TypeDefinitionId = VariableTypeIds.BaseDataVariableType;
        variable.NodeId = new NodeId(name, NamespaceIndex);
        variable.BrowseName = new QualifiedName(name, NamespaceIndex);
        variable.DisplayName = new LocalizedText(displayName);
        variable.WriteMask = AttributeWriteMask.DisplayName | AttributeWriteMask.Description;
        variable.UserWriteMask = AttributeWriteMask.DisplayName | AttributeWriteMask.Description;
        variable.DataType = dataType;
        variable.ValueRank = valueRank;
        variable.AccessLevel = AccessLevels.CurrentRead | AccessLevels.CurrentWrite;
        variable.UserAccessLevel = AccessLevels.CurrentRead | AccessLevels.CurrentWrite;
        variable.MinimumSamplingInterval = 100;

        if (parent != null)
        {
            parent.AddChild(variable);
        }

        return variable;
    }

    private void AddEngineeringUnit(BaseVariableState variable, string unitId, string displayName)
    {
        ExtensionObject engineeringUnit = new ExtensionObject(
            new EUInformation(
                unitId,                    // UnitId
                displayName,               // DisplayName
                string.Empty              // Description
            ));

        PropertyState property = new PropertyState(variable);
        property.ReferenceTypeId = ReferenceTypes.HasProperty;
        property.TypeDefinitionId = VariableTypeIds.PropertyType;
        property.NodeId = new NodeId(variable.SymbolicName + "_EURange", NamespaceIndex);
        property.BrowseName = BrowseNames.EngineeringUnits;
        property.DisplayName = BrowseNames.EngineeringUnits;
        property.DataType = DataTypeIds.EUInformation;
        property.ValueRank = ValueRanks.Scalar;
        property.AccessLevel = AccessLevels.CurrentRead;
        property.UserAccessLevel = AccessLevels.CurrentRead;
        property.Value = engineeringUnit;
        variable.AddChild(property);
    }

    private void AddAnalogRange(BaseDataVariableState variable, double min, double max)
    {
        Range range = new Range(min, max);
        ExtensionObject extensionObject = new ExtensionObject(range);

        PropertyState property = new PropertyState(variable);
        property.ReferenceTypeId = ReferenceTypes.HasProperty;
        property.TypeDefinitionId = VariableTypeIds.PropertyType;
        property.NodeId = new NodeId(variable.SymbolicName + "_Range", NamespaceIndex);
        property.BrowseName = BrowseNames.EURange;
        property.DisplayName = BrowseNames.EURange;
        property.DataType = DataTypeIds.Range;
        property.ValueRank = ValueRanks.Scalar;
        property.AccessLevel = AccessLevels.CurrentRead;
        property.UserAccessLevel = AccessLevels.CurrentRead;
        property.Value = extensionObject;
        variable.AddChild(property);
    }

    protected override NodeStateCollection LoadPredefinedNodes(ISystemContext context)
    {
        NodeStateCollection predefinedNodes = new NodeStateCollection();
        return predefinedNodes;
    }
}

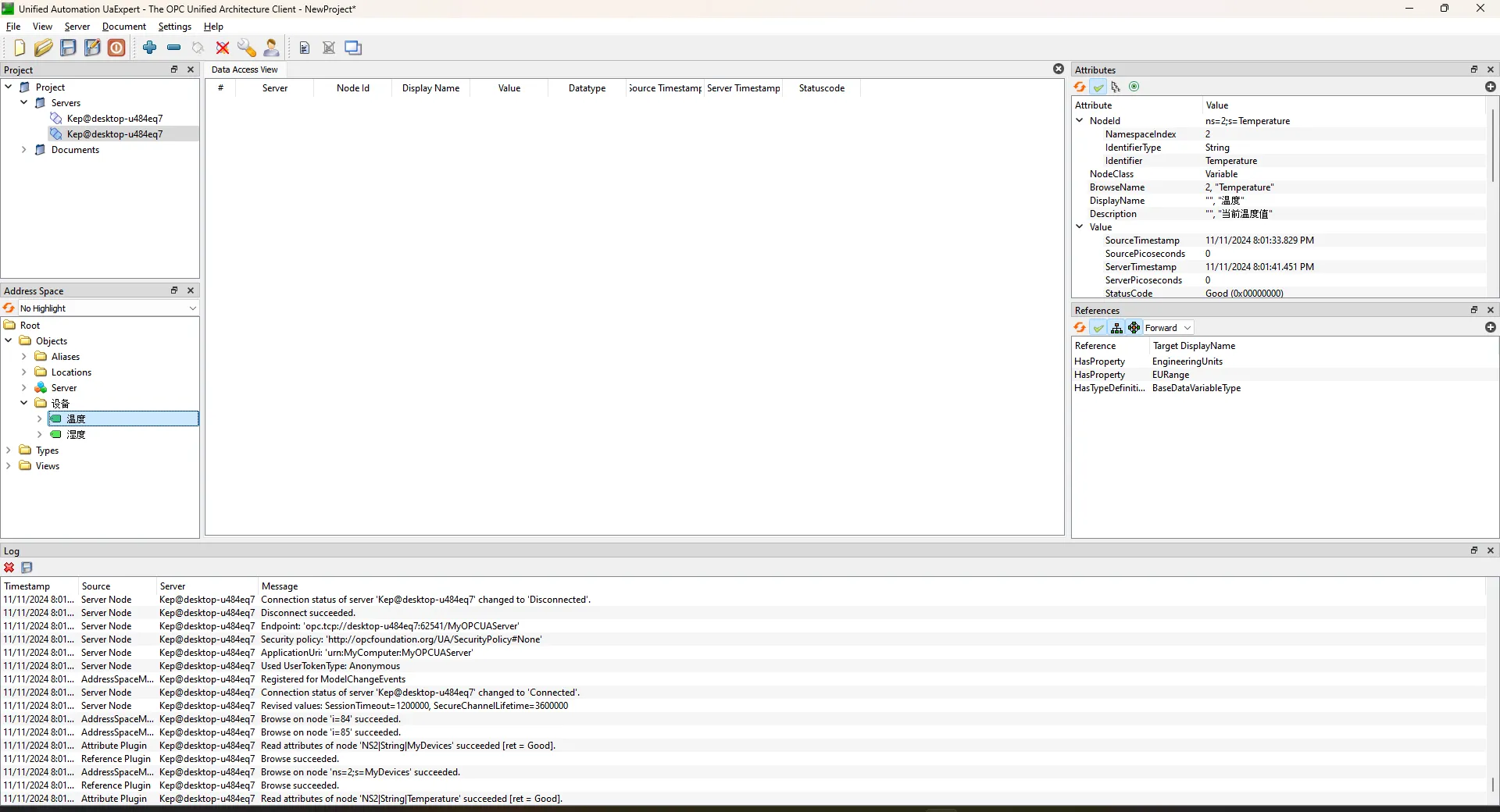

使用UaExpert 简单测试

3. 注意事项

本示例使用了自签名证书，生产环境中应使用正式的安全证书
为了简化示例，启用了自动接受不受信任的证书（AutoAcceptUntrustedCertificates = true）
生产环境中应该添加适当的错误处理和日志记录
可以根据需要添加更多的节点和功能

结论

这个示例提供了一个基础但完整的OPC UA服务器实现。它可以作为开发更复杂OPC UA应用程序的起点。根据具体需求，你可以扩展功能，添加更多的节点类型，实现数据持久化等高级特性。
