简介

本教程将详细介绍如何在 Windows Forms 中创建一个自定义的仪表盘控件。这个控件具有以下特性：

• 可配置的颜色区间
• 平滑的动画效果
• 可自定义的外观
• 刻度和数值显示
• 设计时支持，这个以前没咋研究过，有点尴尬了。。

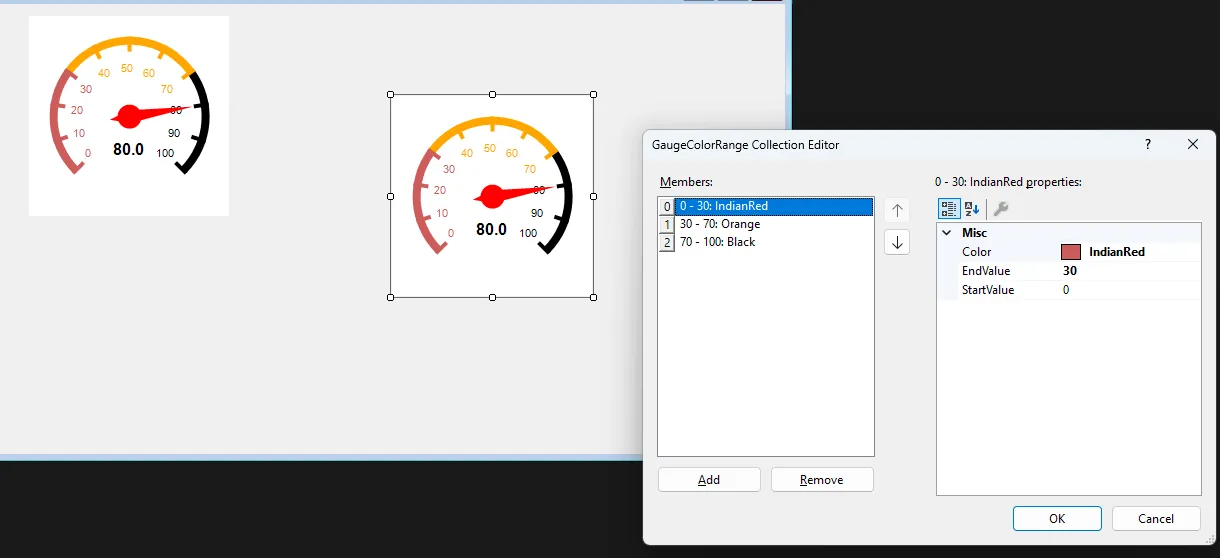

先看一下效果

以前一直没有认真的实现过控件集合编辑，发现这块还是挺麻烦的。

基础类定义

颜色区间类 (GaugeColorRange)

C#
// 颜色区间类
[Serializable]
[TypeConverter(typeof(ExpandableObjectConverter))]
public class GaugeColorRange : ICloneable
{
    private float _startValue;
    private float _endValue;
    private Color _color;

    public GaugeColorRange()
    {
        _startValue = 0;
        _endValue = 0;
        _color = Color.Black;
    }

    public GaugeColorRange(float start, float end, Color color)
    {
        _startValue = start;
        _endValue = end;
        _color = color;
    }

    [Description("区间起始值")]
    [Browsable(true)]
    [DefaultValue(0f)]
    public float StartValue
    {
        get => _startValue;
        set => _startValue = value;
    }

    [Description("区间结束值")]
    [Browsable(true)]
    [DefaultValue(0f)]
    public float EndValue
    {
        get => _endValue;
        set => _endValue = value;
    }

    [Description("区间颜色")]
    [Browsable(true)]
    public Color Color
    {
        get => _color;
        set => _color = value;
    }

    public object Clone()
    {
        return new GaugeColorRange(StartValue, EndValue, Color);
    }

    public override string ToString()
    {
        return $"{StartValue} - {EndValue}: {Color.Name}";
    }
}

颜色区间集合类 (GaugeColorRangeCollection)

C#
// 颜色区间集合类
[Serializable]
public class GaugeColorRangeCollection : BindingList<GaugeColorRange>
{
    public GaugeColorRangeCollection()
    {
        AllowNew = true;
        AllowEdit = true;
        AllowRemove = true;
    }

    public GaugeColorRangeCollection Clone()
    {
        var newCollection = new GaugeColorRangeCollection();
        foreach (var range in this)
        {
            newCollection.Add((GaugeColorRange)range.Clone());
        }
        return newCollection;
    }
}

颜色区间集合编辑器 (GaugeColorRangeCollectionEditor)

C#
// 颜色区间集合编辑器
public class GaugeColorRangeCollectionEditor : CollectionEditor
{
    public GaugeColorRangeCollectionEditor(Type type) : base(type)
    {
    }

    protected override Type CreateCollectionItemType()
    {
        return typeof(GaugeColorRange);
    }

    protected override object CreateInstance(Type itemType)
    {
        return new GaugeColorRange(0, 100, Color.Black);
    }
}

主控件类 (GaugeMeter)

字段和属性

C#
public class GaugeMeter : Control
{
    private float _currentValue;
    private float _minValue = 0;
    private float _maxValue = 100;
    private Color _dialColor = Color.DarkBlue;
    private Color _pointerColor = Color.Red;
    private Timer _animationTimer;
    private float _targetValue;
    private float _dialThickness = 3f;
    private GaugeColorRangeCollection _colorRanges;

    public GaugeMeter()
    {
        SetStyle(ControlStyles.OptimizedDoubleBuffer |
                ControlStyles.AllPaintingInWmPaint |
                ControlStyles.UserPaint, true);

        Size = new Size(200, 200);
        BackColor = Color.White;
        _colorRanges = new GaugeColorRangeCollection();
    }

    [Category("Appearance")]
    [Description("颜色区间集合")]
    [DesignerSerializationVisibility(DesignerSerializationVisibility.Content)]
    [Editor(typeof(GaugeColorRangeCollectionEditor), typeof(UITypeEditor))]
    public GaugeColorRangeCollection ColorRanges
    {
        get => _colorRanges;
        set
        {
            if (_colorRanges != value)
            {
                _colorRanges = value;
                Invalidate();
            }
        }
    }

    public float DialThickness
    {
        get => _dialThickness;
        set
        {
            if (value >= 1 && value <= 20) // 限制合理范围
            {
                _dialThickness = value;
                Invalidate();
            }
        }
    }

    public float MinValue
    {
        get => _minValue;
        set
        {
            _minValue = value;
            Invalidate();
        }
    }

    public float MaxValue
    {
        get => _maxValue;
        set
        {
            _maxValue = value;
            Invalidate();
        }
    }

    public float Value
    {
        get => _currentValue;
        set
        {
            if (value < _minValue) value = _minValue;
            if (value > _maxValue) value = _maxValue;
            _targetValue = value;

            if (_animationTimer == null)
            {
                _animationTimer = new Timer();
                _animationTimer.Interval = 16;
                _animationTimer.Tick += AnimationTimer_Tick;
            }
            _animationTimer.Start();
        }
    }

    public Color DialColor
    {
        get => _dialColor;
        set
        {
            _dialColor = value;
            Invalidate();
        }
    }

    public Color PointerColor
    {
        get => _pointerColor;
        set
        {
            _pointerColor = value;
            Invalidate();
        }
    }


    private void AnimationTimer_Tick(object sender, EventArgs e)
    {
        float diff = _targetValue - _currentValue;
        if (Math.Abs(diff) < 0.1f)
        {
            _currentValue = _targetValue;
            _animationTimer.Stop();
        }
        else
        {
            _currentValue += diff * 0.1f;
        }
        Invalidate();
    }

    protected override void OnPaint(PaintEventArgs e)
    {
        e.Graphics.SmoothingMode = SmoothingMode.AntiAlias;

        float centerX = Width / 2f;
        float centerY = Height / 2f;
        float radius = Math.Min(Width, Height) * 0.4f;

        using (var path = new GraphicsPath())
        {
            // 绘制外圈
            float adjustedRadius = radius - _dialThickness / 2;

            if (_colorRanges != null && _colorRanges.Count > 0)
            {
                foreach (var range in _colorRanges)
                {
                    if (range.StartValue >= range.EndValue) continue;

                    // 计算起始和结束角度
                    float startAngle = 135 + (range.StartValue - _minValue) /
                        (_maxValue - _minValue) * 270;
                    float endAngle = 135 + (range.EndValue - _minValue) /
                        (_maxValue - _minValue) * 270;
                    float sweepAngle = endAngle - startAngle;

                    using (var pen = new Pen(range.Color, _dialThickness))
                    {
                        e.Graphics.DrawArc(pen,
                            centerX - adjustedRadius,
                            centerY - adjustedRadius,
                            adjustedRadius * 2,
                            adjustedRadius * 2,
                            startAngle,
                            sweepAngle);
                    }
                }
            }
            else
            {
                // 如果没有设置颜色区间，使用默认颜色
                using (var pen = new Pen(_dialColor, _dialThickness))
                {
                    e.Graphics.DrawArc(pen,
                        centerX - adjustedRadius,
                        centerY - adjustedRadius,
                        adjustedRadius * 2,
                        adjustedRadius * 2,
                        135,
                        270);
                }
            }

            // 获取当前值对应的颜色
            Color currentColor = GetColorForValue(_currentValue);

            // 绘制刻度
            for (int i = 0; i <= 10; i++)
            {
                float angle = 135 + i * 27;
                float radian = angle * (float)Math.PI / 180f;

                float scaleLength = _dialThickness + 7;
                float startX = centerX + (radius - scaleLength) * (float)Math.Cos(radian);
                float startY = centerY + (radius - scaleLength) * (float)Math.Sin(radian);
                float endX = centerX + radius * (float)Math.Cos(radian);
                float endY = centerY + radius * (float)Math.Sin(radian);

                // 获取刻度值对应的颜色
                float value = _minValue + (_maxValue - _minValue) * i / 10f;
                Color scaleColor = GetColorForValue(value);

                using (var pen = new Pen(scaleColor, Math.Max(1, _dialThickness / 2)))
                {
                    e.Graphics.DrawLine(pen, startX, startY, endX, endY);
                }

                // 绘制刻度值
                string text = value.ToString("F0");
                using (var font = new Font("Arial", 8))
                {
                    float textX = centerX + (radius - scaleLength - 15) * (float)Math.Cos(radian);
                    float textY = centerY + (radius - scaleLength - 15) * (float)Math.Sin(radian);

                    using (var brush = new SolidBrush(scaleColor))
                    {
                        e.Graphics.DrawString(text, font, brush,
                            textX - 10, textY - 5);
                    }
                }
            }

            // 绘制指针
            float valueAngle = 135 + (_currentValue - _minValue) /
                (_maxValue - _minValue) * 270;
            float valueRadian = valueAngle * (float)Math.PI / 180f;

            float pointerLength = radius * 0.8f;
            float pointerWidth = Math.Max(2, _dialThickness * 0.8f);

            PointF[] pointer = new PointF[]
            {
        new PointF(centerX + pointerLength * (float)Math.Cos(valueRadian),
            centerY + pointerLength * (float)Math.Sin(valueRadian)),
        new PointF(centerX + pointerWidth * (float)Math.Cos(valueRadian + Math.PI / 2),
            centerY + pointerWidth * (float)Math.Sin(valueRadian + Math.PI / 2)),
        new PointF(centerX - 20 * (float)Math.Cos(valueRadian),
            centerY - 20 * (float)Math.Sin(valueRadian)),
        new PointF(centerX + pointerWidth * (float)Math.Cos(valueRadian - Math.PI / 2),
            centerY + pointerWidth * (float)Math.Sin(valueRadian - Math.PI / 2)),
            };

            using (var brush = new SolidBrush(_pointerColor))
            {
                e.Graphics.FillPolygon(brush, pointer);
            }

            // 中心圆
            float centerCircleSize = Math.Max(10, _dialThickness * 3);
            using (var brush = new SolidBrush(_pointerColor))
            {
                e.Graphics.FillEllipse(brush,
                    centerX - centerCircleSize / 2,
                    centerY - centerCircleSize / 2,
                    centerCircleSize,
                    centerCircleSize);
            }

            // 绘制当前值
            using (var font = new Font("Arial", Math.Max(12, _dialThickness + 3), FontStyle.Bold))
            {
                string valueText = _currentValue.ToString("F1");
                SizeF size = e.Graphics.MeasureString(valueText, font);
                using (var brush = new SolidBrush(currentColor))
                {
                    e.Graphics.DrawString(valueText, font, brush,
                        centerX - size.Width / 2,
                        centerY + radius * 0.3f);
                }
            }
        }

        base.OnPaint(e);
    }
    // 根据数值获取对应的颜色
    private Color GetColorForValue(float value)
    {
        if (_colorRanges != null)
        {
            foreach (var range in _colorRanges)
            {
                if (value >= range.StartValue && value <= range.EndValue)
                {
                    return range.Color;
                }
            }
        }
        return _dialColor;
    }


    protected override void Dispose(bool disposing)
    {
        if (disposing)
        {
            if (_animationTimer != null)
            {
                _animationTimer.Dispose();
                _animationTimer = null;
            }
        }
        base.Dispose(disposing);
    }
}

使用示例

基本使用

C#
public partial class Form1 : Form
{
    private GaugeMeter gaugeMeter;

    public Form1()
    {
        InitializeComponent();

        gaugeMeter = new GaugeMeter
        {
            Location = new Point(50, 50),
            Size = new Size(200, 200),
            MinValue = 0,
            MaxValue = 100,
            Value = 0,
            DialColor = Color.Gray,
            PointerColor = Color.Red,
            DialThickness = 5f
        };

        // 添加颜色区间
        gaugeMeter.ColorRanges.Add(new GaugeColorRange(0, 30, Color.Green));
        gaugeMeter.ColorRanges.Add(new GaugeColorRange(30, 70, Color.Yellow));
        gaugeMeter.ColorRanges.Add(new GaugeColorRange(70, 100, Color.Red));

        this.Controls.Add(gaugeMeter);
    }
}

总结

本教程展示了如何创建一个功能完整的仪表盘控件，包括：

• 自定义控件的基本结构
• 属性和事件的处理
• 绘图技术的应用
• 动画效果的实现
• 设计时支持的添加

通过这个示例，您可以了解到 Windows Forms 自定义控件开发的主要方面，并能够根据需求进行扩展和修改。

这个控件可以作为基础吧，根据具体需求进行进一步的开发和定制，有时间估计事件这块我会先增加，这个简单，想法也比较明确。
