在运动控制和图形显示领域，笛卡尔坐标系是一个非常重要的概念。本文将详细介绍如何在C# WinForm应用程序中实现一个完整的笛卡尔坐标系统，并展示其在实际应用中的使用场景。

应用场景

笛卡尔坐标系在以下场景中特别有用：

1. 运动控制系统
   • CNC机床位置显示
   • 机器人运动轨迹规划
   • 自动化设备位置监控
2. 数据可视化
   • 生产数据趋势图
   • 质量控制图表
   • 传感器数据实时显示
3. 工业自动化
   • 工件加工路径显示
   • 设备运动范围监控
   • 碰撞检测可视化

完整代码实现

坐标系控件类

C#
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace AppMotionControl
{
    public class CartesianCoordinateControl : Control
    {
        private float scale = 1.0f;          // 缩放比例
        private Point origin;                 // 原点位置
        private Point mouseDownLocation;      // 鼠标按下位置
        private bool isPanning = false;       // 是否正在平移
        private const int GRID_SIZE = 50;     // 网格大小

        public CartesianCoordinateControl()
        {
            // 设置控件属性
            this.DoubleBuffered = true;
            this.BackColor = Color.White;
            this.Resize += CartesianCoordinateControl_Resize;
            this.MouseDown += CartesianCoordinateControl_MouseDown;
            this.MouseMove += CartesianCoordinateControl_MouseMove;
            this.MouseUp += CartesianCoordinateControl_MouseUp;
            this.MouseWheel += CartesianCoordinateControl_MouseWheel;

            // 初始化原点位置
            UpdateOrigin();
        }

        private void UpdateOrigin()
        {
            origin = new Point(Width / 2, Height / 2);
        }

        private void CartesianCoordinateControl_Resize(object sender, EventArgs e)
        {
            UpdateOrigin();
            Invalidate();
        }

        private void CartesianCoordinateControl_MouseDown(object sender, MouseEventArgs e)
        {
            if (e.Button == MouseButtons.Left)
            {
                isPanning = true;
                mouseDownLocation = e.Location;
                Cursor = Cursors.Hand;
            }
        }

        private void CartesianCoordinateControl_MouseMove(object sender, MouseEventArgs e)
        {
            if (isPanning)
            {
                int dx = e.X - mouseDownLocation.X;
                int dy = e.Y - mouseDownLocation.Y;
                origin.X += dx;
                origin.Y += dy;
                mouseDownLocation = e.Location;
                Invalidate();
            }
        }

        private void CartesianCoordinateControl_MouseUp(object sender, MouseEventArgs e)
        {
            isPanning = false;
            Cursor = Cursors.Default;
        }

        private void CartesianCoordinateControl_MouseWheel(object sender, MouseEventArgs e)
        {
            float oldScale = scale;
            if (e.Delta > 0)
                scale *= 1.1f;
            else
                scale /= 1.1f;

            // 限制缩放范围
            scale = Math.Max(0.1f, Math.Min(5.0f, scale));
            Invalidate();
        }

        protected override void OnPaint(PaintEventArgs e)
        {
            base.OnPaint(e);
            Graphics g = e.Graphics;
            g.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.AntiAlias;

            // 绘制网格
            DrawGrid(g);

            // 绘制坐标轴
            DrawAxes(g);

            // 绘制刻度
            DrawScale(g);
        }

        private void DrawGrid(Graphics g)
        {
            using (Pen gridPen = new Pen(Color.LightGray, 1))
            {
                // 计算网格范围
                int scaledGridSize = (int)(GRID_SIZE * scale);
                int startX = origin.X % scaledGridSize;
                int startY = origin.Y % scaledGridSize;

                // 绘制垂直线
                for (int x = startX; x < Width; x += scaledGridSize)
                {
                    g.DrawLine(gridPen, x, 0, x, Height);
                }

                // 绘制水平线
                for (int y = startY; y < Height; y += scaledGridSize)
                {
                    g.DrawLine(gridPen, 0, y, Width, y);
                }
            }
        }

        private void DrawAxes(Graphics g)
        {
            using (Pen axisPen = new Pen(Color.Black, 2))
            {
                // X轴
                g.DrawLine(axisPen, 0, origin.Y, Width, origin.Y);
                // Y轴
                g.DrawLine(axisPen, origin.X, 0, origin.X, Height);

                // 绘制箭头
                DrawArrow(g, new Point(Width - 10, origin.Y), true);
                DrawArrow(g, new Point(origin.X, 10), false);
            }
        }

        private void DrawArrow(Graphics g, Point point, bool isHorizontal)
        {
            using (Pen arrowPen = new Pen(Color.Black, 2))
            {
                if (isHorizontal)
                {
                    g.DrawLine(arrowPen, point.X, point.Y, point.X - 10, point.Y - 5);
                    g.DrawLine(arrowPen, point.X, point.Y, point.X - 10, point.Y + 5);
                }
                else
                {
                    g.DrawLine(arrowPen, point.X, point.Y, point.X - 5, point.Y + 10);
                    g.DrawLine(arrowPen, point.X, point.Y, point.X + 5, point.Y + 10);
                }
            }
        }

        private void DrawScale(Graphics g)
        {
            using (Font font = new Font("Arial", 8))
            using (Brush brush = new SolidBrush(Color.Black))
            {
                // X轴刻度
                int scaledGridSize = (int)(GRID_SIZE * scale);
                for (int x = origin.X; x < Width; x += scaledGridSize)
                {
                    int value = (x - origin.X) / scaledGridSize;
                    g.DrawString(value.ToString(), font, brush, x - 10, origin.Y + 5);
                }
                for (int x = origin.X - scaledGridSize; x > 0; x -= scaledGridSize)
                {
                    int value = (x - origin.X) / scaledGridSize;
                    g.DrawString(value.ToString(), font, brush, x - 10, origin.Y + 5);
                }

                // Y轴刻度
                for (int y = origin.Y; y < Height; y += scaledGridSize)
                {
                    int value = -((y - origin.Y) / scaledGridSize);
                    g.DrawString(value.ToString(), font, brush, origin.X + 5, y - 10);
                }
                for (int y = origin.Y - scaledGridSize; y > 0; y -= scaledGridSize)
                {
                    int value = -((y - origin.Y) / scaledGridSize);
                    g.DrawString(value.ToString(), font, brush, origin.X + 5, y - 10);
                }
            }
        }

        // 坐标转换方法：实际坐标到屏幕坐标
        public Point WorldToScreen(PointF worldPoint)
        {
            return new Point(
                (int)(origin.X + worldPoint.X * GRID_SIZE * scale),
                (int)(origin.Y - worldPoint.Y * GRID_SIZE * scale)
            );
        }

        // 坐标转换方法：屏幕坐标到实际坐标
        public PointF ScreenToWorld(Point screenPoint)
        {
            return new PointF(
                (screenPoint.X - origin.X) / (GRID_SIZE * scale),
                (origin.Y - screenPoint.Y) / (GRID_SIZE * scale)
            );
        }
    }
}

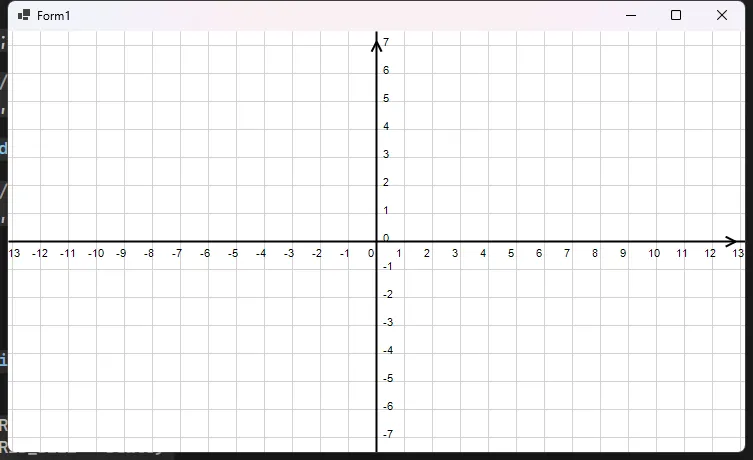

功能特点

1. 交互功能
   • 鼠标拖动平移坐标系
   • 鼠标滚轮缩放
   • 自动调整网格大小
   • 实时坐标转换
2. 显示功能
   • 坐标轴与箭头
   • 网格线
   • 刻度标注
   • 抗锯齿渲染
3. 坐标转换
   • 世界坐标与屏幕坐标互转
   • 支持不同比例尺显示

实际应用示例

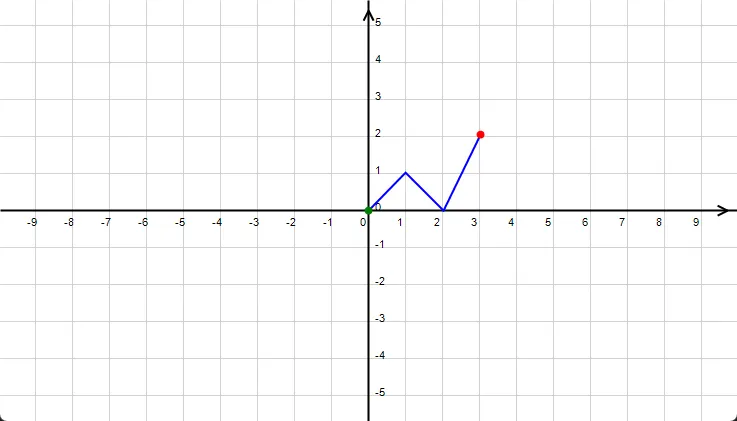

运动轨迹显示

C#
// 记录运动路径
private List<PointF> motionPath = new List<PointF>();
private Pen pathPen = new Pen(Color.Blue, 2);

// 更新运动路径
public void AddPathPoint(PointF point)
{
    motionPath.Add(point);
    Invalidate(); // 重绘控件
}

// 清除路径
public void ClearPath()
{
    motionPath.Clear();
    Invalidate();
}

OnPaint 中调用

C#
protected override void OnPaint(PaintEventArgs e)
{
    base.OnPaint(e);
    Graphics g = e.Graphics;
    g.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.AntiAlias;

    // 绘制网格
    DrawGrid(g);
    // 绘制坐标轴
    DrawAxes(g);
    // 绘制刻度
    DrawScale(g);
    // 绘制运动路径
    DrawMotionPath(g);
}

C#
// 实现DrawMotionPath方法
private void DrawMotionPath(Graphics g)
{
    if (motionPath.Count < 2) return;

    // 创建点数组来存储转换后的屏幕坐标
    Point[] screenPoints = new Point[motionPath.Count];

    // 将世界坐标转换为屏幕坐标
    for (int i = 0; i < motionPath.Count; i++)
    {
        screenPoints[i] = WorldToScreen(motionPath[i]);
    }

    // 绘制路径线段
    g.DrawLines(pathPen, screenPoints);

    // 在路径的起点绘制一个绿色圆点
    using (SolidBrush startBrush = new SolidBrush(Color.Green))
    {
        g.FillEllipse(startBrush,
            screenPoints[0].X - 4,
            screenPoints[0].Y - 4,
            8, 8);
    }

    // 在路径的终点绘制一个红色圆点
    using (SolidBrush endBrush = new SolidBrush(Color.Red))
    {
        g.FillEllipse(endBrush,
            screenPoints[screenPoints.Length - 1].X - 4,
            screenPoints[screenPoints.Length - 1].Y - 4,
            8, 8);
    }
}

实时位置更新

C#
public void UpdatePosition(PointF position)
{
    using (Graphics g = CreateGraphics())
    {
        Point screenPos = WorldToScreen(position);
        using (SolidBrush brush = new SolidBrush(Color.Red))
        {
            g.FillEllipse(brush, screenPos.X - 5, screenPos.Y - 5, 10, 10);
        }
    }
}

总结

本文详细介绍了在C# WinForm环境下实现笛卡尔坐标系的完整方案，包括核心功能实现、实际应用场景、性能优化等方面。通过这个实现，可以满足大多数工业自动化、运动控制等领域的可视化需求。代码结构清晰，易于扩展，可以根据具体需求进行定制化开发。
