简介

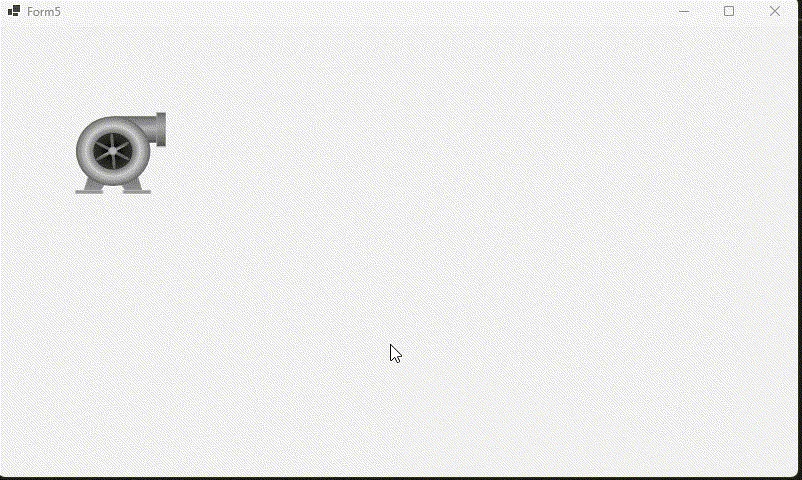

在Windows Forms应用程序开发中，有时我们需要显示和管理SVG（可缩放矢量图形）文件。本文将详细介绍一个功能完整的SVG查看器控件（SvgViewer）的实现，该控件支持SVG文件的加载、动画播放、缩放等功能。

核心功能

• SVG文件加载（单个/批量/目录）
• 支持从程序集资源加载SVG
• 动画播放控制（播放/暂停/停止）
• 帧切换（上一个/下一个）
• 自动播放和循环播放
• 多种显示模式
• 资源缓存机制

实现详解

C#
using Svg;
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Linq;
using System.Reflection;
using System.Text;
using System.Threading.Tasks;
using Timer = System.Windows.Forms.Timer;

namespace AppSvg01
{
    /// <summary>
    /// SVG显示控件
    /// </summary>
    public class SvgViewer : Control
    {
        private readonly Timer animationTimer;
        private readonly List<SvgDocument> svgDocuments;
        private readonly Dictionary<string, SvgDocument> resourceCache;
        private Image currentImage;
        private int currentIndex;
        private bool isPlaying;

        #region Properties

        private int interval = 1000; // 默认1秒
        [Category("Behavior")]
        [Description("设置SVG切换间隔（毫秒）")]
        public int Interval
        {
            get => interval;
            set
            {
                if (value < 1) value = 1;
                interval = value;
                animationTimer.Interval = value;
            }
        }

        [Category("Behavior")]
        [Description("是否自动播放")]
        public bool AutoPlay { get; set; }

        [Category("Behavior")]
        [Description("是否循环播放")]
        public bool Loop { get; set; } = true;

        [Category("Appearance")]
        [Description("SVG缩放模式")]
        public PictureBoxSizeMode SizeMode { get; set; } = PictureBoxSizeMode.Zoom;

        [Browsable(false)]
        public int CurrentIndex
        {
            get => currentIndex;
            set
            {
                if (value >= 0 && value < svgDocuments.Count)
                {
                    currentIndex = value;
                    UpdateDisplay();
                }
            }
        }

        [Browsable(false)]
        public bool IsPlaying => isPlaying;

        [Browsable(false)]
        public int Count => svgDocuments.Count;

        #endregion

        #region Events

        public event EventHandler<int> FrameChanged;
        public event EventHandler PlaybackCompleted;

        #endregion

        public SvgViewer()
        {
            SetStyle(ControlStyles.OptimizedDoubleBuffer |
                    ControlStyles.AllPaintingInWmPaint |
                    ControlStyles.UserPaint |
                    ControlStyles.ResizeRedraw, true);

            svgDocuments = new List<SvgDocument>();
            resourceCache = new Dictionary<string, SvgDocument>();

            animationTimer = new Timer
            {
                Interval = Interval,
                Enabled = false
            };
            animationTimer.Tick += AnimationTimer_Tick;
        }

        #region Public Methods

        /// <summary>
        /// 添加SVG文件
        /// </summary>
        public void AddFile(string filePath)
        {
            try
            {
                if (File.Exists(filePath))
                {
                    var doc = SvgDocument.Open(filePath);
                    svgDocuments.Add(doc);

                    if (svgDocuments.Count == 1)
                    {
                        UpdateDisplay();
                        if (AutoPlay) Play();
                    }
                }
            }
            catch (Exception ex)
            {
                throw new Exception($"Failed to load SVG file: {filePath}", ex);
            }
        }

        /// <summary>
        /// 添加多个SVG文件
        /// </summary>
        public void AddFiles(string[] filePaths)
        {
            foreach (var path in filePaths)
            {
                AddFile(path);
            }
        }

        /// <summary>
        /// 从目录加载SVG文件
        /// </summary>
        public void LoadFromDirectory(string directoryPath, string searchPattern = "*.svg")
        {
            if (!Directory.Exists(directoryPath))
                throw new DirectoryNotFoundException(directoryPath);

            var files = Directory.GetFiles(directoryPath, searchPattern)
                               .OrderBy(x => x)
                               .ToArray();
            AddFiles(files);
        }

        /// <summary>
        /// 添加嵌入资源SVG
        /// </summary>
        public void AddResource(string resourceName, Assembly assembly = null)
        {
            assembly ??= Assembly.GetExecutingAssembly();

            if (resourceCache.ContainsKey(resourceName))
            {
                svgDocuments.Add(resourceCache[resourceName]);
                return;
            }

            try
            {
                using (var stream = assembly.GetManifestResourceStream(resourceName))
                {
                    if (stream == null)
                        throw new Exception($"Resource not found: {resourceName}");

                    var doc = SvgDocument.Open<SvgDocument>(stream);
                    resourceCache[resourceName] = doc;
                    svgDocuments.Add(doc);

                    if (svgDocuments.Count == 1)
                    {
                        UpdateDisplay();
                        if (AutoPlay) Play();
                    }
                }
            }
            catch (Exception ex)
            {
                throw new Exception($"Failed to load SVG resource: {resourceName}", ex);
            }
        }

        /// <summary>
        /// 清除所有SVG
        /// </summary>
        public void Clear()
        {
            Stop();
            currentImage?.Dispose();
            currentImage = null;
            svgDocuments.Clear();
            currentIndex = 0;
            Invalidate();
        }

        /// <summary>
        /// 开始播放
        /// </summary>
        public void Play()
        {
            if (svgDocuments.Count > 1 && !isPlaying)
            {
                isPlaying = true;
                animationTimer.Start();
            }
        }

        /// <summary>
        /// 暂停播放
        /// </summary>
        public void Pause()
        {
            isPlaying = false;
            animationTimer.Stop();
        }

        /// <summary>
        /// 停止播放
        /// </summary>
        public void Stop()
        {
            isPlaying = false;
            animationTimer.Stop();
            currentIndex = 0;
            UpdateDisplay();
        }

        /// <summary>
        /// 下一个SVG
        /// </summary>
        public void Next()
        {
            if (svgDocuments.Count == 0) return;
            currentIndex = (currentIndex + 1) % svgDocuments.Count;
            UpdateDisplay();
        }

        /// <summary>
        /// 上一个SVG
        /// </summary>
        public void Previous()
        {
            if (svgDocuments.Count == 0) return;
            currentIndex = (currentIndex - 1 + svgDocuments.Count) % svgDocuments.Count;
            UpdateDisplay();
        }

        #endregion

        #region Protected Methods

        protected override void OnPaint(PaintEventArgs e)
        {
            base.OnPaint(e);

            if (currentImage == null)
                return;

            var rect = GetDisplayRectangle();
            e.Graphics.DrawImage(currentImage, rect);
        }

        protected override void Dispose(bool disposing)
        {
            if (disposing)
            {
                animationTimer.Dispose();
                currentImage?.Dispose();
                svgDocuments.Clear();
                resourceCache.Clear();
            }
            base.Dispose(disposing);
        }

        #endregion

        #region Private Methods

        private void AnimationTimer_Tick(object sender, EventArgs e)
        {
            if (!isPlaying || svgDocuments.Count <= 1)
                return;

            currentIndex++;

            if (currentIndex >= svgDocuments.Count)
            {
                if (Loop)
                {
                    currentIndex = 0;
                }
                else
                {
                    Stop();
                    PlaybackCompleted?.Invoke(this, EventArgs.Empty);
                    return;
                }
            }

            UpdateDisplay();
        }

        private void UpdateDisplay()
        {
            if (svgDocuments.Count == 0 || currentIndex >= svgDocuments.Count)
                return;

            var oldImage = currentImage;
            var doc = svgDocuments[currentIndex];

            // 根据控件大小计算图像尺寸
            var rect = GetDisplayRectangle();
            currentImage = doc.Draw(rect.Width, rect.Height);

            oldImage?.Dispose();
            Invalidate();

            FrameChanged?.Invoke(this, currentIndex);
        }

        private Rectangle GetDisplayRectangle()
        {
            if (currentImage == null || svgDocuments.Count == 0)
                return ClientRectangle;

            var rect = ClientRectangle;
            var doc = svgDocuments[currentIndex];
            var aspectRatio = doc.Width / (float)doc.Height;

            switch (SizeMode)
            {
                case PictureBoxSizeMode.Normal:
                    return new Rectangle(0, 0, (int)doc.Width, (int)doc.Height);

                case PictureBoxSizeMode.StretchImage:
                    return rect;

                case PictureBoxSizeMode.AutoSize:
                    return new Rectangle(0, 0, (int)doc.Width, (int)doc.Height);

                case PictureBoxSizeMode.CenterImage:
                    return new Rectangle(
                        (rect.Width - (int)doc.Width) / 2,
                        (rect.Height - (int)doc.Height) / 2,
                        (int)doc.Width,
                        (int)doc.Height);

                case PictureBoxSizeMode.Zoom:
                    var scale = Math.Min(
                        rect.Width / (float)doc.Width,
                        rect.Height / (float)doc.Height);
                    var width = (int)(doc.Width * scale);
                    var height = (int)(doc.Height * scale);
                    return new Rectangle(
                        (rect.Width - width) / 2,
                        (rect.Height - height) / 2,
                        width,
                        height);

                default:
                    return rect;
            }
        }

        #endregion
    }
}

总结

SvgViewer控件提供了一个完整的SVG文件查看和管理解决方案，具有以下特点：

1. 易于集成到现有项目
2. 功能完善，包含基础和高级特性
3. 性能优化，支持流畅的动画效果
4. 异常处理机制完善
5. 灵活的显示模式

通过这个控件，开发者可以轻松地在WinForms应用程序中实现SVG文件的显示和管理功能。
