简介

SVG.NET是一个强大的开源库，专门用于在.NET应用程序中处理SVG（Scalable Vector Graphics）文件。本文将详细介绍如何在WinForm应用程序中使用SVG.NET库来显示和操作SVG图片。

环境准备

安装SVG.NET库

在Visual Studio中，通过NuGet包管理器安装Svg包：

PowerShell
Install-Package Svg

或在包管理器控制台中执行：

C#
dotnet add package Svg

添加必要的引用

C#
using Svg;
using System.Drawing;
using System.Drawing.Imaging;

基础使用

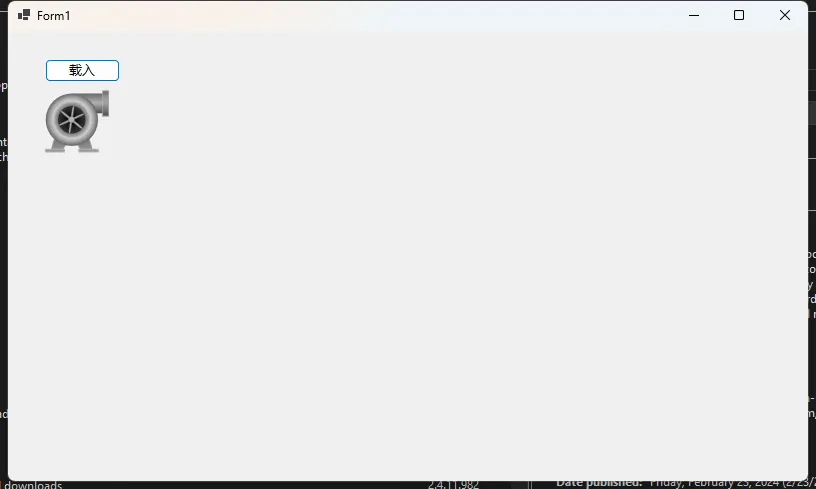

加载并显示SVG

C#
private void btnLoad_Click(object sender, EventArgs e)
{
    var svgDocument = SvgDocument.Open("1.svg");
    var bitmap = svgDocument.Draw();
    pictureBox1.Image = bitmap;
}

1.svg文件

SVG
<!DOCTYPE svg PUBLIC "-//W3C//DTD SVG 1.1//EN" "http://www.w3.org/Graphics/SVG/1.1/DTD/svg11.dtd"[]><svg version="1.1" id="Layer_1" xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" width="64px" height="64px" viewBox="0 0 125.921 121.105" enable-background="new 0 0 125.921 121.105" xml:space="preserve">
<g id="Group_OutletPort">

    <linearGradient id="SVGID_1_" gradientUnits="userSpaceOnUse" x1="119.3706" y1="-412.0227" x2="119.3706" y2="-361.6145" gradientTransform="matrix(1 0 0 -1 0 -360.895)">
    <stop offset="0" style="stop-color:#4D4D4D" />
    <stop offset="0.21" style="stop-color:#717171" />
    <stop offset="0.54" style="stop-color:#A6A6A6" />
    <stop offset="0.64" style="stop-color:#9F9F9F" />
    <stop offset="0.79" style="stop-color:#8C8C8C" />
    <stop offset="0.97" style="stop-color:#6D6D6D" />
    <stop offset="1" style="stop-color:#666666" />
  </linearGradient>
  <rect x="112.821" y="0.719" fill="url(#SVGID_1_)" stroke="#B3B3B3" stroke-width="0.5" width="13.101" height="50.408" />

    <linearGradient id="SVGID_2_" gradientUnits="userSpaceOnUse" x1="83.0708" y1="76.9197" x2="83.0708" y2="115.9207" gradientTransform="matrix(1 0 0 -1 0 122.105)">
    <stop offset="0" style="stop-color:#4D4D4D" />
    <stop offset="0.52" style="stop-color:#B2B2B2" />
    <stop offset="1" style="stop-color:#666666" />
  </linearGradient>
  <polyline fill="url(#SVGID_2_)" points="53.235,6.184 112.907,6.184 112.907,45.185 102.517,45.185  " />
</g>
<g id="Group_Legs">

    <linearGradient id="SVGID_3_" gradientUnits="userSpaceOnUse" x1="52.5283" y1="1094.1335" x2="52.5283" y2="1058.2527" gradientTransform="matrix(1 0 0 1 0 -973.75)">
    <stop offset="0" style="stop-color:#999999" />
    <stop offset="1" style="stop-color:#666666" />
  </linearGradient>
  <path fill="url(#SVGID_3_)" stroke="#999999" stroke-width="0.396" d="M11.321,120.384l10.254-35.881h61.908l10.252,35.881H72.966   L52.462,89.497l-20.769,30.887H11.321z" />
</g>
<g id="Group_LegBase">
  <path fill="#999999" stroke="#B3B3B3" stroke-width="0.5" d="M0.76,115.851h37.533v5.254H0.76V115.851z" />
  <path fill="#999999" stroke="#B3B3B3" stroke-width="0.5" d="M66.603,115.851h37.929v5.254H66.603V115.851L66.603,115.851z" />
</g>
<g id="Group_PumpBody">

    <radialGradient id="SVGID_4_" cx="126.48" cy="837.1521" r="51.5659" gradientTransform="matrix(0.9999 0.0069 -0.0069 0.9999 -67.9976 -780.2224)" gradientUnits="userSpaceOnUse">
    <stop offset="0.18" style="stop-color:#333333" />
    <stop offset="0.26" style="stop-color:#383838" />
    <stop offset="0.35" style="stop-color:#454545" />
    <stop offset="0.44" style="stop-color:#5C5C5C" />
    <stop offset="0.54" style="stop-color:#7B7B7B" />
    <stop offset="0.64" style="stop-color:#A4A4A4" />
    <stop offset="0.72" style="stop-color:#CCCCCC" />
    <stop offset="0.81" style="stop-color:#B1B1B1" />
    <stop offset="0.99" style="stop-color:#6B6B6B" />
    <stop offset="1" style="stop-color:#666666" />
  </radialGradient>
  <path fill="url(#SVGID_4_)" d="M53.047,6.158c28.477,0.196,51.402,23.439,51.207,51.917c-0.195,28.475-23.438,51.398-51.914,51.204   C23.862,109.086,0.938,85.841,1.133,57.364C1.326,28.889,24.573,5.963,53.047,6.158z" />
</g>
<g id="Group_CenterShade">

    <radialGradient id="SVGID_5_" cx="52.4468" cy="-418.7268" r="27.2441" gradientTransform="matrix(1 0 0 -1 0 -360.895)" gradientUnits="userSpaceOnUse">
    <stop offset="0" style="stop-color:#000000" />
    <stop offset="1" style="stop-color:#333333" />
  </radialGradient>
  <path fill="url(#SVGID_5_)" d="M38.399,81.168C25.508,73.407,21.35,56.67,29.111,43.78c7.762-12.888,24.502-17.045,37.385-9.285   c12.891,7.761,17.047,24.498,9.289,37.393C68.021,84.769,51.286,88.928,38.399,81.168z" />
</g>
<g id="Group_Impeller">

    <linearGradient id="SVGID_6_" gradientUnits="userSpaceOnUse" x1="101.9819" y1="125.5398" x2="106.1411" y2="125.5342" gradientTransform="matrix(0.9889 0.1484 0.1484 -0.9889 -69.6528 166.4384)">
    <stop offset="0.01" style="stop-color:#666666" />
    <stop offset="0.51" style="stop-color:#B8B8B8" />
    <stop offset="1" style="stop-color:#666666" />
  </linearGradient>
  <path fill="url(#SVGID_6_)" d="M51.014,77.055c-0.642,4.14-2.024,7.351-3.166,7.187c-1.139-0.165-1.545-3.651-0.902-7.789   l0.014-0.081l5.874-37.983c0.64-4.139,1.986-7.314,3.125-7.149c1.142,0.163,1.507,3.623,0.866,7.76L51.014,77.055z" />

    <linearGradient id="SVGID_7_" gradientUnits="userSpaceOnUse" x1="-277.9653" y1="21.0618" x2="-273.8071" y2="21.0562" gradientTransform="matrix(0.6317 -0.7752 -0.7752 -0.6317 243.0495 -142.3917)">
    <stop offset="0.01" style="stop-color:#666666" />
    <stop offset="0.51" style="stop-color:#B8B8B8" />
    <stop offset="1" style="stop-color:#666666" />
  </linearGradient>
  <path fill="url(#SVGID_7_)" d="M68.625,68.765c3.234,2.659,5.291,5.485,4.57,6.387c-0.724,0.895-3.931-0.533-7.162-3.193   l-0.063-0.053L36.284,47.493c-3.234-2.66-5.28-5.437-4.559-6.333c0.722-0.898,3.884,0.55,7.117,3.21L68.625,68.765z" />

    <linearGradient id="SVGID_8_" gradientUnits="userSpaceOnUse" x1="216.7651" y1="433.1179" x2="220.9233" y2="433.1123" gradientTransform="matrix(0.4225 0.9064 0.9064 -0.4225 -432.8737 42.0522)">
    <stop offset="0.01" style="stop-color:#666666" />
    <stop offset="0.51" style="stop-color:#B8B8B8" />
    <stop offset="1" style="stop-color:#666666" />
  </linearGradient>
  <path fill="url(#SVGID_8_)" d="M35.58,67.368c-3.803,1.752-7.245,2.373-7.739,1.332c-0.491-1.041,2.193-3.306,5.994-5.057   l0.076-0.033L68.82,47.527c3.805-1.752,7.195-2.384,7.686-1.345c0.494,1.041-2.188,3.258-5.99,5.008L35.58,67.368z" />

    <radialGradient id="SVGID_9_" cx="51.9766" cy="64.4246" r="6.541" gradientTransform="matrix(1 0 0 -1 0 122.105)" gradientUnits="userSpaceOnUse">
    <stop offset="0" style="stop-color:#B8B8B8" />
    <stop offset="0.47" style="stop-color:#B6B6B6" />
    <stop offset="0.64" style="stop-color:#AFAFAF" />
    <stop offset="0.76" style="stop-color:#A3A3A3" />
    <stop offset="0.85" style="stop-color:#929292" />
    <stop offset="0.94" style="stop-color:#7D7D7D" />
    <stop offset="1" style="stop-color:#666666" />
  </radialGradient>
  <path fill="url(#SVGID_9_)" d="M53.274,51.269c3.543,0.718,5.829,4.168,5.11,7.709c-0.717,3.544-4.167,5.83-7.71,5.113   c-3.536-0.719-5.824-4.171-5.105-7.711C46.284,52.844,49.739,50.552,53.274,51.269z" />
</g>
</svg>

4. 高级功能

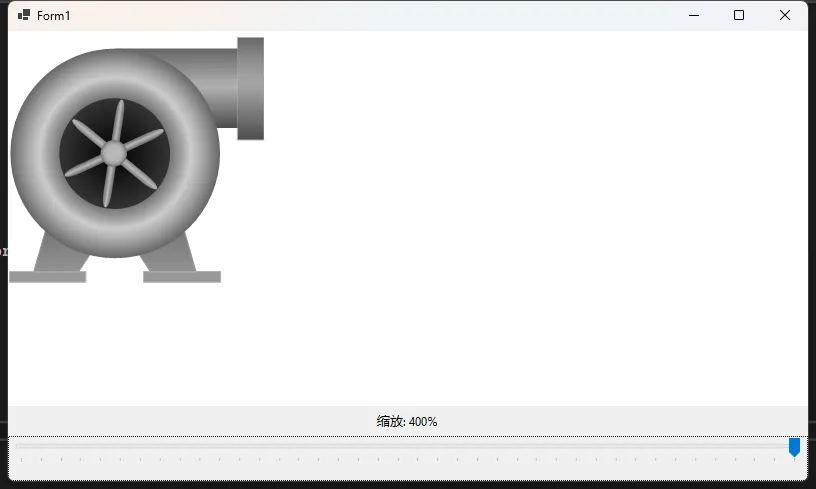

4.1 SVG缩放控制

C#
public partial class Form1 : Form
{
    private SvgDocument svgDoc;
    private float currentScale = 1.0f;
    private PictureBox pictureBox;
    private TrackBar scaleTrackBar;
    private Label scaleLabel;
    private int originalWidth;
    private int originalHeight;

    public Form1()
    {
        InitializeComponent();

        // 创建PictureBox用于显示SVG
        pictureBox = new PictureBox
        {
            Dock = DockStyle.Fill,
            SizeMode = PictureBoxSizeMode.Normal, // 更改为Normal以便更好地控制缩放
            BackColor = Color.White
        };

        // 创建TrackBar用于控制缩放
        scaleTrackBar = new TrackBar
        {
            Dock = DockStyle.Bottom,
            Minimum = 10,  // 10% 的缩放
            Maximum = 400, // 400% 的缩放
            Value = 100,   // 默认100%
            TickFrequency = 10
        };
        scaleTrackBar.ValueChanged += ScaleTrackBar_ValueChanged;

        // 创建标签显示当前缩放比例
        scaleLabel = new Label
        {
            Text = "缩放: 100%",
            Dock = DockStyle.Bottom,
            TextAlign = ContentAlignment.MiddleCenter,
            Height = 30
        };

        // 添加控件到窗体
        this.Controls.Add(pictureBox);
        this.Controls.Add(scaleLabel);
        this.Controls.Add(scaleTrackBar);

        LoadSvg();
    }

    private void LoadSvg()
    {
        try
        {
            // 加载SVG文件
            svgDoc = SvgDocument.Open("1.svg");

            // 保存原始尺寸
            originalWidth = (int)svgDoc.Width.Value;
            originalHeight = (int)svgDoc.Height.Value;

            // 初始显示
            UpdateSvgDisplay();
        }
        catch (Exception ex)
        {
            MessageBox.Show($"加载SVG文件时出错: {ex.Message}");
        }
    }

    private void ScaleTrackBar_ValueChanged(object sender, EventArgs e)
    {
        currentScale = scaleTrackBar.Value / 100f;
        scaleLabel.Text = $"缩放: {scaleTrackBar.Value}%";
        UpdateSvgDisplay();
    }

    private void UpdateSvgDisplay()
    {
        if (svgDoc != null)
        {
            try
            {
                // 计算缩放后的尺寸
                int scaledWidth = (int)(originalWidth * currentScale);
                int scaledHeight = (int)(originalHeight * currentScale);

                // 创建新的位图
                var bitmap = new Bitmap(scaledWidth, scaledHeight);

                using (Graphics graphics = Graphics.FromImage(bitmap))
                {
                    // 设置高质量绘制
                    graphics.SmoothingMode = SmoothingMode.HighQuality;
                    graphics.InterpolationMode = InterpolationMode.HighQualityBicubic;
                    graphics.PixelOffsetMode = PixelOffsetMode.HighQuality;
                    graphics.Clear(Color.White);

                    // 创建缩放矩阵
                    graphics.ScaleTransform(currentScale, currentScale);

                    // 绘制SVG
                    svgDoc.Draw(graphics, new SizeF(originalWidth, originalHeight));
                }

                // 更新PictureBox
                if (pictureBox.Image != null)
                {
                    pictureBox.Image.Dispose();
                }
                pictureBox.Image = bitmap;
                pictureBox.Refresh();
            }
            catch (Exception ex)
            {
                MessageBox.Show($"更新SVG显示时出错: {ex.Message}");
            }
        }
    }

    protected override void OnFormClosing(FormClosingEventArgs e)
    {
        base.OnFormClosing(e);
        // 清理资源
        if (pictureBox.Image != null)
        {
            pictureBox.Image.Dispose();
        }
    }
}

4.2 SVG颜色修改

SvgColorManager 类

C#
public class SvgColorManager
{
    private SvgDocument svgDocument;
    private PictureBox pictureBox;
    private Dictionary<SvgVisualElement, ColorInfo> originalColors; // 修改存储结构

    // 用于存储颜色信息的类
    private class ColorInfo
    {
        public SvgPaintServer Fill { get; set; }
        public SvgPaintServer Stroke { get; set; }
        public float? StrokeWidth { get; set; }
    }

    public SvgColorManager(PictureBox pictureBox)
    {
        this.pictureBox = pictureBox ?? throw new ArgumentNullException(nameof(pictureBox));
        this.originalColors = new Dictionary<SvgVisualElement, ColorInfo>();
    }

    public bool LoadSvg(string filePath)
    {
        try
        {
            svgDocument = SvgDocument.Open(filePath);
            StoreOriginalColors();
            UpdateDisplay();
            return true;
        }
        catch (Exception ex)
        {
            MessageBox.Show($"加载SVG文件失败: {ex.Message}");
            return false;
        }
    }

    private void StoreOriginalColors()
    {
        originalColors.Clear();
        foreach (var element in svgDocument.Descendants())
        {
            if (element is SvgVisualElement visual)
            {
                // 存储每个元素的原始颜色信息
                originalColors[visual] = new ColorInfo
                {
                    Fill = visual.Fill,
                    Stroke = visual.Stroke,
                    StrokeWidth = visual.StrokeWidth
                };
            }
        }
    }

    public void ChangeElementColor(Color newColor, Type elementType = null)
    {
        if (svgDocument == null) return;

        foreach (var element in svgDocument.Descendants())
        {
            if (elementType != null && element.GetType() != elementType) continue;

            if (element is SvgVisualElement visual)
            {
                visual.Fill = new SvgColourServer(newColor);
            }
        }

        UpdateDisplay();
    }

    public void ChangeStrokeColor(Color newColor, float? strokeWidth = null)
    {
        if (svgDocument == null) return;

        foreach (var element in svgDocument.Descendants())
        {
            if (element is SvgVisualElement visual)
            {
                visual.Stroke = new SvgColourServer(newColor);
                if (strokeWidth.HasValue)
                {
                    visual.StrokeWidth = strokeWidth.Value;
                }
            }
        }

        UpdateDisplay();
    }

    public void RestoreOriginalColors()
    {
        if (svgDocument == null) return;

        foreach (var element in svgDocument.Descendants())
        {
            if (element is SvgVisualElement visual && originalColors.ContainsKey(visual))
            {
                var originalColor = originalColors[visual];
                visual.Fill = originalColor.Fill;
                visual.Stroke = originalColor.Stroke;
                if (originalColor.StrokeWidth.HasValue)
                {
                    visual.StrokeWidth = originalColor.StrokeWidth.Value;
                }
            }
        }

        UpdateDisplay();
    }

    public void ChangeElementColorById(string elementId, Color fillColor, Color? strokeColor = null)
    {
        if (svgDocument == null) return;

        var element = svgDocument.Descendants()
            .FirstOrDefault(e => e is SvgVisualElement && e.ID == elementId) as SvgVisualElement;

        if (element != null)
        {
            element.Fill = new SvgColourServer(fillColor);
            if (strokeColor.HasValue)
            {
                element.Stroke = new SvgColourServer(strokeColor.Value);
            }
            UpdateDisplay();
        }
    }

    private void UpdateDisplay()
    {
        try
        {
            if (pictureBox.Image != null)
            {
                var oldImage = pictureBox.Image;
                pictureBox.Image = svgDocument.Draw();
                oldImage.Dispose();
            }
            else
            {
                pictureBox.Image = svgDocument.Draw();
            }
            pictureBox.Refresh();
        }
        catch (Exception ex)
        {
            MessageBox.Show($"更新显示失败: {ex.Message}");
        }
    }

    public bool SaveSvg(string filePath)
    {
        try
        {
            svgDocument.Write(filePath);
            return true;
        }
        catch (Exception ex)
        {
            MessageBox.Show($"保存SVG文件失败: {ex.Message}");
            return false;
        }
    }

    public void Dispose()
    {
        if (pictureBox?.Image != null)
        {
            pictureBox.Image.Dispose();
            pictureBox.Image = null;
        }
        originalColors.Clear();
        pictureBox = null;
        svgDocument = null;
    }
}

C#

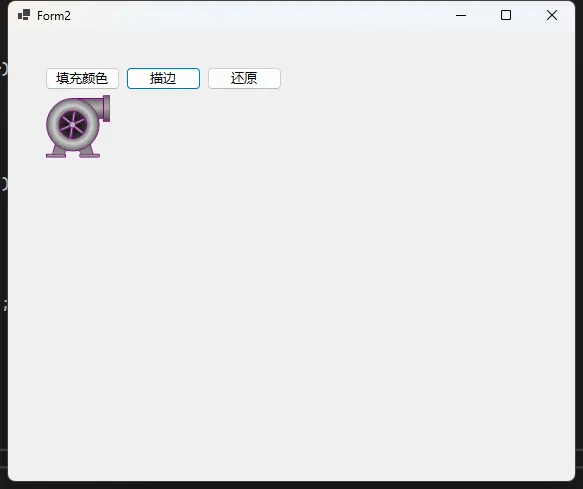

public partial class Form2 : Form
{
    private SvgColorManager colorManager;
    public Form2()
    {
        InitializeComponent();
        // 初始化ColorManager
        colorManager = new SvgColorManager(pictureBox1);

        // 加载SVG文件
        colorManager.LoadSvg("1.svg"); // 确保文件存在
    }

    private void btnChangeFill_Click(object sender, EventArgs e)
    {
        using (ColorDialog colorDialog = new ColorDialog())
        {
            if (colorDialog.ShowDialog() == DialogResult.OK)
            {
                colorManager.ChangeElementColor(colorDialog.Color);
            }
        }
    }

    private void btnChangeStroke_Click(object sender, EventArgs e)
    {
        using (ColorDialog colorDialog = new ColorDialog())
        {
            if (colorDialog.ShowDialog() == DialogResult.OK)
            {
                colorManager.ChangeStrokeColor(colorDialog.Color);
            }
        }
    }

    private void btnRestore_Click(object sender, EventArgs e)
    {
        colorManager.RestoreOriginalColors();
    }
}

4.3 SVG元素操作

C#
using Svg.Transforms;
using Svg;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace AppSvg01
{
    public class SvgElementManager
    {
        private SvgDocument svgDocument;
        private PictureBox pictureBox;

        public SvgElementManager(PictureBox pictureBox)
        {
            this.pictureBox = pictureBox ?? throw new ArgumentNullException(nameof(pictureBox));
        }

        /// <summary>
        /// 加载SVG文件
        /// </summary>
        public bool LoadSvg(string filePath)
        {
            try
            {
                svgDocument = SvgDocument.Open(filePath);
                UpdateDisplay();
                return true;
            }
            catch (Exception ex)
            {
                MessageBox.Show($"加载SVG文件失败: {ex.Message}");
                return false;
            }
        }

        /// <summary>
        /// 修改特定元素
        /// </summary>
        public void ModifyElement(string elementId, float opacity = 1.0f, float rotation = 0,
            float? scaleX = null, float? scaleY = null, Color? fillColor = null)
        {
            if (svgDocument == null) return;

            var element = svgDocument.GetElementById(elementId);
            if (element != null && element is SvgVisualElement visual)
            {
                // 设置透明度
                visual.Opacity = opacity;

                // 创建变换集合
                if (visual.Transforms == null)
                    visual.Transforms = new SvgTransformCollection();
                else
                    visual.Transforms.Clear();

                // 添加旋转
                if (rotation != 0)
                {
                    visual.Transforms.Add(new SvgRotate(rotation));
                }

                // 添加缩放
                if (scaleX.HasValue || scaleY.HasValue)
                {
                    visual.Transforms.Add(new SvgScale(
                        scaleX ?? 1.0f,
                        scaleY ?? scaleX ?? 1.0f
                    ));
                }

                // 设置填充颜色
                if (fillColor.HasValue)
                {
                    visual.Fill = new SvgColourServer(fillColor.Value);
                }

                UpdateDisplay();
            }
        }

        /// <summary>
        /// 添加新元素
        /// </summary>
        public void AddElement(SvgElementType elementType, float x, float y, float width, float height,
            Color fillColor, Color? strokeColor = null, float strokeWidth = 1)
        {
            if (svgDocument == null) return;

            SvgVisualElement element = null;

            switch (elementType)
            {
                case SvgElementType.Rectangle:
                    element = new SvgRectangle
                    {
                        X = new SvgUnit(x),
                        Y = new SvgUnit(y),
                        Width = new SvgUnit(width),
                        Height = new SvgUnit(height)
                    };
                    break;

                case SvgElementType.Circle:
                    element = new SvgCircle
                    {
                        CenterX = new SvgUnit(x + width / 2),
                        CenterY = new SvgUnit(y + height / 2),
                        Radius = new SvgUnit(Math.Min(width, height) / 2)
                    };
                    break;

                case SvgElementType.Ellipse:
                    element = new SvgEllipse
                    {
                        CenterX = new SvgUnit(x + width / 2),
                        CenterY = new SvgUnit(y + height / 2),
                        RadiusX = new SvgUnit(width / 2),
                        RadiusY = new SvgUnit(height / 2)
                    };
                    break;

                case SvgElementType.Line:
                    element = new SvgLine
                    {
                        StartX = new SvgUnit(x),
                        StartY = new SvgUnit(y),
                        EndX = new SvgUnit(x + width),
                        EndY = new SvgUnit(y + height)
                    };
                    break;
            }

            if (element != null)
            {
                element.Fill = new SvgColourServer(fillColor);
                if (strokeColor.HasValue)
                {
                    element.Stroke = new SvgColourServer(strokeColor.Value);
                    element.StrokeWidth = strokeWidth;
                }

                svgDocument.Children.Add(element);
                UpdateDisplay();
            }
        }

        /// <summary>
        /// 删除元素
        /// </summary>
        public void RemoveElement(string elementId)
        {
            if (svgDocument == null) return;

            var element = svgDocument.GetElementById(elementId);
            if (element != null)
            {
                element.Parent?.Children.Remove(element);
                UpdateDisplay();
            }
        }

        /// <summary>
        /// 移动元素
        /// </summary>
        public void MoveElement(string elementId, float deltaX, float deltaY)
        {
            if (svgDocument == null) return;

            var element = svgDocument.GetElementById(elementId);
            if (element is SvgVisualElement visual)
            {
                if (visual.Transforms == null)
                    visual.Transforms = new SvgTransformCollection();

                visual.Transforms.Add(new SvgTranslate(deltaX, deltaY));
                UpdateDisplay();
            }
        }

        /// <summary>
        /// 更新显示
        /// </summary>
        private void UpdateDisplay()
        {
            try
            {
                if (pictureBox.Image != null)
                {
                    var oldImage = pictureBox.Image;
                    pictureBox.Image = svgDocument.Draw();
                    oldImage.Dispose();
                }
                else
                {
                    pictureBox.Image = svgDocument.Draw();
                }
                pictureBox.Refresh();
            }
            catch (Exception ex)
            {
                MessageBox.Show($"更新显示失败: {ex.Message}");
            }
        }

        /// <summary>
        /// 清理资源
        /// </summary>
        public void Dispose()
        {
            pictureBox.Image?.Dispose();
            pictureBox = null;
            svgDocument = null;
        }
    }

    // SVG元素类型枚举
    public enum SvgElementType
    {
        Rectangle,
        Circle,
        Ellipse,
        Line
    }
}

6. 总结

使用SVG.NET库在WinForm中处理SVG文件是一个强大而灵活的解决方案。通过本文提供的示例和最佳实践，开发者可以轻松实现SVG文件的加载、显示、缩放和颜色修改等功能。记住要注意性能优化和资源管理，以确保应用程序的稳定性和效率。
