DIY你的鼠标宏:C#实现鼠标录制与回放
编辑
2025-02-09
C# 应用
00
请注意，本文编写于 86 天前，最后修改于 86 天前，其中某些信息可能已经过时。

目录

1. 简介
2. 核心功能
3. 主要类和结构
3.1 MouseEvent 类
3.2 Form1 类
4. 录制功能实现
4.1 开始录制
4.2 记录鼠标状态
5. 保存和加载功能
5.1 保存录制的操作
5.2 加载保存的操作
6. 回放功能实现
6.1 开始回放
6.2 执行回放
7. 全局热键控制
8.完整代码
9 总结

1. 简介

最早这个我是在20年前用vb写过，当时只是为了自己玩游戏写的，本文将详细介绍如何使用C#开发一个鼠标操作录制和回放工具。这个工具可以记录用户的鼠标移动和点击操作，并能够保存、加载和回放这些操作。

2. 核心功能

  • 录制鼠标移动和点击
  • 保存和加载录制的操作
  • 回放录制的操作
  • 支持循环回放
  • 全局热键控制

3. 主要类和结构

3.1 MouseEvent 类

C#
public class MouseEvent
{
    public int X { get; set; }
    public int Y { get; set; }
    public bool IsLeftClick { get; set; }

    public MouseEvent(int x, int y, bool isLeftClick)
    {
        X = x;
        Y = y;
        IsLeftClick = isLeftClick;
    }
}

这个类用于存储单个鼠标事件，包括鼠标位置和是否左键点击。

3.2 Form1 类

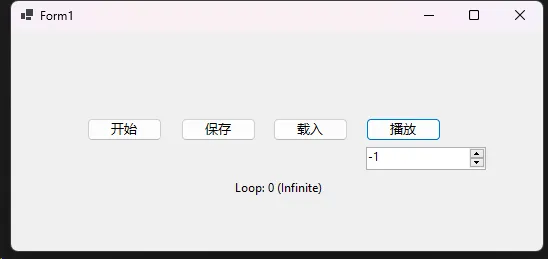

这是主窗体类，包含了所有的UI控件和核心逻辑。


4. 录制功能实现

4.1 开始录制

C#
private void btnStartRecord_Click(object sender, EventArgs e)
{
    if (!isRecording)
    {
        events.Clear();
        isRecording = true;
        btnStartRecord.Text = "Stop Recording";
        recordTimer = new System.Windows.Forms.Timer();
        recordTimer.Interval = 100;
        recordTimer.Tick += Timer_Tick;
        recordTimer.Start();
    }
    else
    {
        StopRecording();
    }
}

当点击"开始录制"按钮时，我们清空之前的事件列表，设置录制状态为true，并启动一个计时器每100毫秒记录一次鼠标状态。

4.2 记录鼠标状态

C#
private void Timer_Tick(object sender, EventArgs e)
{
    if (isRecording)
    {
        Point currentPosition = Cursor.Position;
        bool isLeftButtonPressed = (Control.MouseButtons & MouseButtons.Left) != 0;
        events.Add(new MouseEvent(currentPosition.X, currentPosition.Y, isLeftButtonPressed));
    }
}

在计时器的Tick事件中，我们获取当前鼠标位置和左键状态，并将其添加到事件列表中。

5. 保存和加载功能

5.1 保存录制的操作

C#
private void btnSave_Click(object sender, EventArgs e)
{
    SaveFileDialog saveFileDialog = new SaveFileDialog();
    saveFileDialog.Filter = "Text files (*.txt)|*.txt";
    if (saveFileDialog.ShowDialog() == DialogResult.OK)
    {
        using (StreamWriter writer = new StreamWriter(saveFileDialog.FileName))
        {
            foreach (MouseEvent mouseEvent in events)
            {
                writer.WriteLine($"{mouseEvent.X},{mouseEvent.Y},{mouseEvent.IsLeftClick}");
            }
        }
    }
}

保存功能将录制的鼠标事件以CSV格式写入文本文件。

5.2 加载保存的操作

C#
private void btnLoad_Click(object sender, EventArgs e)
{
    OpenFileDialog openFileDialog = new OpenFileDialog();
    openFileDialog.Filter = "Text files (*.txt)|*.txt";
    if (openFileDialog.ShowDialog() == DialogResult.OK)
    {
        events.Clear();
        using (StreamReader reader = new StreamReader(openFileDialog.FileName))
        {
            string line;
            while ((line = reader.ReadLine()) != null)
            {
                string[] parts = line.Split(',');
                if (parts.Length == 3)
                {
                    int x = int.Parse(parts[0]);
                    int y = int.Parse(parts[1]);
                    bool isLeftClick = bool.Parse(parts[2]);
                    events.Add(new MouseEvent(x, y, isLeftClick));
                }
            }
        }
    }
}

加载功能从文本文件读取CSV格式的鼠标事件，并重建事件列表。

6. 回放功能实现

6.1 开始回放

C#
private void btnPlay_Click(object sender, EventArgs e)
{
    if (!isPlaying)
    {
        loopCount = (int)numericUpDownLoopCount.Value;
        currentLoop = 0;
        isPlaying = true;
        btnPlay.Text = "停止";
        Thread playThread = new Thread(PlayEvents);
        playThread.Start();
    }
    else
    {
        StopPlaying();
    }
}

当点击"播放"按钮时，我们设置循环次数，创建一个新线程来执行回放操作。

6.2 执行回放

C#
private void PlayEvents()
{
    while (isPlaying && (loopCount == -1 || currentLoop < loopCount))
    {
        currentLoop++;
        UpdateLoopCountDisplay();

        foreach (MouseEvent mouseEvent in events)
        {
            if (!isPlaying) break;

            SetCursorPos(mouseEvent.X, mouseEvent.Y);

            if (mouseEvent.IsLeftClick)
            {
                mouse_event(MOUSEEVENTF_LEFTDOWN, mouseEvent.X, mouseEvent.Y, 0, 0);
                mouse_event(MOUSEEVENTF_LEFTUP, mouseEvent.X, mouseEvent.Y, 0, 0);
            }

            Thread.Sleep(100);
        }

        if (loopCount != -1 && currentLoop >= loopCount)
        {
            break;
        }
    }

    // 回放结束后更新UI
    this.Invoke((MethodInvoker)delegate
    {
        isPlaying = false;
        btnPlay.Text = "播放";
        currentLoop = 0;
        UpdateLoopCountDisplay();
    });
}

回放过程中，我们遍历事件列表，设置鼠标位置并模拟点击操作。支持无限循环或指定次数的循环回放。

7. 全局热键控制

为了方便用户随时停止录制或回放，我们实现了一个全局热键（Esc键）来停止所有操作。

C#
private static IntPtr HookCallback(int nCode, IntPtr wParam, IntPtr lParam)
{
    if (nCode >= 0 && wParam == (IntPtr)WM_KEYDOWN)
    {
        int vkCode = Marshal.ReadInt32(lParam);
        if ((Keys)vkCode == Keys.Escape)
        {
            Application.OpenForms[0].Invoke(new Action(() => ((Form1)Application.OpenForms[0]).StopAll()));
        }
    }
    return CallNextHookEx(_hookID, nCode, wParam, lParam);
}

这个回调函数检测Esc键的按下，并调用StopAll方法停止所有操作。

8.完整代码

C#
using System.Diagnostics;
using System.Runtime.InteropServices;

namespace MouseRecorderAndPlayer
{
    public partial class Form1 : Form
    {
        private List<MouseEvent> events = new List<MouseEvent>();
        private bool isRecording = false;
        private bool isPlaying = false;
        private System.Windows.Forms.Timer recordTimer;
        private int loopCount = -1; // -1 表示无限循环
        private int currentLoop = 0;

        // 添加全局键盘钩子相关的字段
        private const int WH_KEYBOARD_LL = 13;
        private const int WM_KEYDOWN = 0x0100;
        private static LowLevelKeyboardProc _proc = HookCallback;
        private static IntPtr _hookID = IntPtr.Zero;

        public Form1()
        {
            InitializeComponent();
            // 在构造函数中设置键盘钩子
            _hookID = SetHook(_proc);
        }
        protected override void OnFormClosing(FormClosingEventArgs e)
        {
            // 在窗体关闭时取消键盘钩子
            UnhookWindowsHookEx(_hookID);
            base.OnFormClosing(e);
        }

        [DllImport("user32.dll", CharSet = CharSet.Auto, SetLastError = true)]
        private static extern IntPtr SetWindowsHookEx(int idHook, LowLevelKeyboardProc lpfn, IntPtr hMod, uint dwThreadId);

        [DllImport("user32.dll", CharSet = CharSet.Auto, SetLastError = true)]
        [return: MarshalAs(UnmanagedType.Bool)]
        private static extern bool UnhookWindowsHookEx(IntPtr hhk);

        [DllImport("user32.dll", CharSet = CharSet.Auto, SetLastError = true)]
        private static extern IntPtr CallNextHookEx(IntPtr hhk, int nCode, IntPtr wParam, IntPtr lParam);

        [DllImport("kernel32.dll", CharSet = CharSet.Auto, SetLastError = true)]
        private static extern IntPtr GetModuleHandle(string lpModuleName);

        [DllImport("user32.dll")]
        static extern bool SetCursorPos(int X, int Y);

        [DllImport("user32.dll")]
        public static extern void mouse_event(int dwFlags, int dx, int dy, int cButtons, int dwExtraInfo);

        private const int MOUSEEVENTF_LEFTDOWN = 0x02;
        private const int MOUSEEVENTF_LEFTUP = 0x04;

        private delegate IntPtr LowLevelKeyboardProc(int nCode, IntPtr wParam, IntPtr lParam);

        private static IntPtr SetHook(LowLevelKeyboardProc proc)
        {
            using (Process curProcess = Process.GetCurrentProcess())
            using (ProcessModule curModule = curProcess.MainModule)
            {
                return SetWindowsHookEx(WH_KEYBOARD_LL, proc, GetModuleHandle(curModule.ModuleName), 0);
            }
        }

        private static IntPtr HookCallback(int nCode, IntPtr wParam, IntPtr lParam)
        {
            if (nCode >= 0 && wParam == (IntPtr)WM_KEYDOWN)
            {
                int vkCode = Marshal.ReadInt32(lParam);
                if ((Keys)vkCode == Keys.Escape)
                {
                    Application.OpenForms[0].Invoke(new Action(() => ((Form1)Application.OpenForms[0]).StopAll()));
                }
            }
            return CallNextHookEx(_hookID, nCode, wParam, lParam);
        }

        private void StopAll()
        {
            if (isRecording)
            {
                StopRecording();
            }
            if (isPlaying)
            {
                StopPlaying();
            }
        }

        private void StopRecording()
        {
            isRecording = false;
            btnStartRecord.Text = "Start Recording";
            recordTimer.Stop();
        }

        private void StopPlaying()
        {
            isPlaying = false;
            btnPlay.Text = "播放";
        }

        private void btnStartRecord_Click(object sender, EventArgs e)
        {
            if (!isRecording)
            {
                events.Clear();
                isRecording = true;
                btnStartRecord.Text = "Stop Recording";
                recordTimer = new System.Windows.Forms.Timer();
                recordTimer.Interval = 100;
                recordTimer.Tick += Timer_Tick;
                recordTimer.Start();
            }
            else
            {
                StopRecording();
            }
        }

        private void Timer_Tick(object sender, EventArgs e)
        {
            if (isRecording)
            {
                Point currentPosition = Cursor.Position;
                bool isLeftButtonPressed = (Control.MouseButtons & MouseButtons.Left) != 0;
                events.Add(new MouseEvent(currentPosition.X, currentPosition.Y, isLeftButtonPressed));
            }
        }


        private void btnSave_Click(object sender, EventArgs e)
        {
            SaveFileDialog saveFileDialog = new SaveFileDialog();
            saveFileDialog.Filter = "Text files (*.txt)|*.txt";
            if (saveFileDialog.ShowDialog() == DialogResult.OK)
            {
                using (StreamWriter writer = new StreamWriter(saveFileDialog.FileName))
                {
                    foreach (MouseEvent mouseEvent in events)
                    {
                        writer.WriteLine($"{mouseEvent.X},{mouseEvent.Y},{mouseEvent.IsLeftClick}");
                    }
                }
            }
        }

        private void btnLoad_Click(object sender, EventArgs e)
        {
            OpenFileDialog openFileDialog = new OpenFileDialog();
            openFileDialog.Filter = "Text files (*.txt)|*.txt";
            if (openFileDialog.ShowDialog() == DialogResult.OK)
            {
                events.Clear();
                using (StreamReader reader = new StreamReader(openFileDialog.FileName))
                {
                    string line;
                    while ((line = reader.ReadLine()) != null)
                    {
                        string[] parts = line.Split(',');
                        if (parts.Length == 3)
                        {
                            int x = int.Parse(parts[0]);
                            int y = int.Parse(parts[1]);
                            bool isLeftClick = bool.Parse(parts[2]);
                            events.Add(new MouseEvent(x, y, isLeftClick));
                        }
                    }
                }
            }
        }

        private void btnPlay_Click(object sender, EventArgs e)
        {
            if (!isPlaying)
            {
                loopCount = (int)numericUpDownLoopCount.Value;
                currentLoop = 0;
                isPlaying = true;
                btnPlay.Text = "播放";
                Thread playThread = new Thread(PlayEvents);
                playThread.Start();
            }
            else
            {
                StopPlaying();
            }
        }

        private void PlayEvents()
        {
            while (isPlaying && (loopCount == -1 || currentLoop < loopCount))
            {
                currentLoop++;
                UpdateLoopCountDisplay();

                foreach (MouseEvent mouseEvent in events)
                {
                    if (!isPlaying) break;

                    SetCursorPos(mouseEvent.X, mouseEvent.Y);

                    if (mouseEvent.IsLeftClick)
                    {
                        mouse_event(MOUSEEVENTF_LEFTDOWN, mouseEvent.X, mouseEvent.Y, 0, 0);
                        mouse_event(MOUSEEVENTF_LEFTUP, mouseEvent.X, mouseEvent.Y, 0, 0);
                    }

                    Thread.Sleep(100);
                }

                if (loopCount != -1 && currentLoop >= loopCount)
                {
                    break;
                }
            }

            this.Invoke((MethodInvoker)delegate
            {
                isPlaying = false;
                btnPlay.Text = "播放";
                currentLoop = 0;
                UpdateLoopCountDisplay();
            });
        }

        private void UpdateLoopCountDisplay()
        {
            this.Invoke((MethodInvoker)delegate
            {
                if (loopCount == -1)
                {
                    lblLoopStatus.Text = $"Loop: {currentLoop} (Infinite)";
                }
                else
                {
                    lblLoopStatus.Text = $"Loop: {currentLoop}/{loopCount}";
                }
            });
        }
    }

    public class MouseEvent
    {
        public int X { get; set; }
        public int Y { get; set; }
        public bool IsLeftClick { get; set; }

        public MouseEvent(int x, int y, bool isLeftClick)
        {
            X = x;
            Y = y;
            IsLeftClick = isLeftClick;
        }
    }
}

9 总结

本文详细介绍了如何使用C#实现一个鼠标操作录制和回放工具。通过使用Windows API和C#的多线程功能，我们实现了鼠标事件的捕获、保存、加载和回放。此外，我们还添加了全局热键控制，提高了工具的使用便利性。这个工具可以在多种场景下使用，如自动化测试、重复性操作模拟等。
